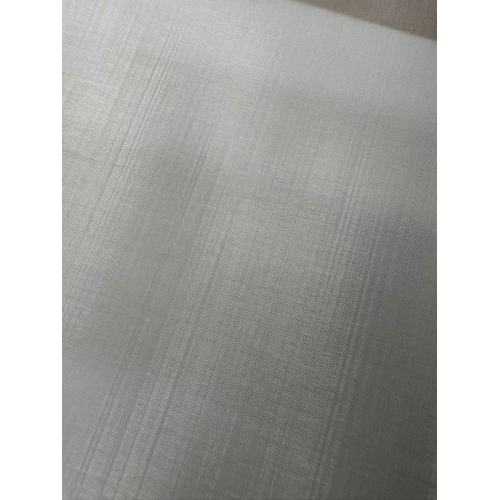

Stainless Steel Sieve — Woven Mesh, Test Sieve & Filter Disc | 3–635 Mesh
| Share | |
|---|---|
| Categories | Stainless Steel |
| Brand | MESCO Steel Wholesaler |
| Model | SS-SV-Multi |
| Material Grade | 304 / 316L / 904L / 321 / 2205 Duplex |
| Mesh Count | 3 mesh – 635 mesh |
| Aperture | 5.15 mm – 0.020 mm |
| Wire Diameter | 0.015 mm – 1.6 mm |
| Weave Type | Plain Weave / Twill Weave / Dutch Weave |
| Product Form | Woven Roll / Framed Test Sieve / Filter Disc |
| Sheet Width | 0.5 m – 2.0 m (roll); 200/200/500/600 mm (framed) |
| Standard | ISO 9044 / ASTM E2016 / GB/T 5330 |
| Certification | ISO 9001 / Material Mill Certificate (MTC) |
| Working Temperature | -200 °C to +800 °C |
| Free Sample | Available (≤200×200 mm swatch) |
| Lead Time | 7–15 working days for stock mesh; 20–30 days custom |
| Packing | PE film + woven bag + plywood pallet / wooden case |
| Download |  |
MESCO stainless steel sieve products are precision-engineered from austenitic, ferritic and duplex stainless steel wires and plates, covering a full 3 mesh to 635 mesh aperture range — from 20 µm ultra-fine laboratory filtration up to 6,300 µm coarse aggregate screening. Each batch is laser-verified for aperture uniformity, tensile strength and surface finish, delivering reliable particle separation across food, pharmaceutical, chemical, mining, water treatment and laboratory workflows. Choose woven sieve mesh rolls for OEM production, framed test sieve stacks for lab particle analysis, or custom filter disc elements for inline process equipment. Materials include 304, 316L, 904L, 2205 duplex, 321 and 430 grades, with ISO 9044, ASTM E2016 and GB/T 5330 compliance plus EN 10204 3.1 material certification. 3 – 635 mesh covering coarse aggregate screening down to 20 µm ultra-fine precision filtration. 304, 316L, 904L, 2205 duplex, 321, 430 to match corrosion, temperature and strength requirements. Up to 3 m wide with precision slitting tolerance of ±0.5 mm, plus custom cut-to-size panels. ISO 9044, ASTM E2016 and GB/T 5330 compliant with full 3.1 MTC material certification. 18% Cr / 8% Ni general-purpose austenitic grade. Excellent oxidation resistance in dry indoor air and mild chemicals. Service temperature -200 °C to 800 °C. Most cost-effective option for non-corrosive aggregate screening, dry powder classification and general industrial sieving. 16% Cr / 10% Ni / 2% Mo low-carbon austenitic grade with enhanced pitting resistance. Withstands chloride environments up to 1,000 ppm. Service temperature -200 °C to 850 °C. Preferred for pharmaceutical API, marine filtration, food contact and chemical processing. FDA-compliant for food contact. 20% Cr / 25% Ni / 4.5% Mo / 1.5% Cu super-austenitic stainless steel with outstanding resistance to sulfuric, phosphoric and chloride attack. Service temperature -200 °C to 950 °C. Specified for aggressive chemical processing, seawater desalination and fertilizer plants. 22% Cr / 5% Ni / 3% Mo dual-phase microstructure with yield strength ≥450 MPa. Superior stress corrosion cracking and chloride pitting resistance. NACE MR0175 certified for sour service. Designed for mining, offshore and heavy-duty vibrating screen decks. 17% Cr / 9% Ni / Ti stabilized austenitic grade for service up to 870 °C with superior resistance to intergranular corrosion after welding. Used in high-temperature exhaust screening, hot gas filtration and heat-treatment workshop sieving. 16% Cr ferritic stainless steel with good atmospheric corrosion resistance. Best suited for indoor dry screening such as construction sand, aggregate grading and non-corrosive particle separation. Economy choice for low-demand environments. Standard supply form supplied on rolls up to 30 m length. Slit-to-width panels available from 100 mm to 3,000 mm. Stocked in 304, 316L and 904L across the full 3 – 635 mesh range. Suitable for OEM fabrication and downstream cutting. Standard 200 mm, 203 mm, 300 mm and 400 mm diameter test sieve with stainless steel rim. Conforms to ISO 3310-1 / ASTM E11 for laboratory particle size analysis. Optional matching sieve lid and receiver pan supplied as a set. Custom-cut discs, rectangles and formed elements from 20 mm to 1,200 mm, edge-welded or with stainless reinforcing rings. Used in inline strainers, centrifuge baskets and filter housings. Perforated plate backup available for high-pressure duty. Ore classification, aggregate grading, sand dewatering. 2205 duplex and 316L sieves for vibrating screen decks handling abrasive particles. Flour, sugar, milk powder, starch, spice sifting. 304 / 316L food-grade sieves with electrolytic polishing finish and FDA-compliant surface. API granulation, excipient screening, capsule powder classification. 316L micro-mesh with GMP-compliant surface finish and full traceability documentation. Catalyst recovery, resin screening, solvent filtration. 316L and 904L sieves for aggressive acid and chloride service. Pre-filtration, sludge dewatering, seawater intake screening. 316L corrosion-resistant mesh for continuous-duty operation. Particle size analysis, soil classification, powder characterization. Test sieve stack with ISO 3310 / ASTM E11 certified aperture tolerance. Raw material grading, glaze and frit screening. 316L and 321 sieves for high-temperature batch preparation. Lithium battery cathode and anode powder. Ultra-fine 200 – 400 mesh 316L sieves for ultrasonic screening equipment. Laser-verified aperture uniformity per batch. Tolerance within ±0.01 mm for meshes ≤200, ISO 9044 and ASTM E2016 compliant. Full traceability with 3.1 MTC, EN 10088-2 chemical composition and mechanical property reports included with every shipment. Custom mesh count, wire diameter, roll width up to 3 m, disc / panel / framed sieve fabrication, PTFE coating and chrome plating on request. Free samples in 7 days. Standard stock shipped within 48 hours. Custom orders: 7 – 15 days. Export experience covering 120+ countries. 304 has 18% Cr / 8% Ni for general screening with mild corrosion resistance. 316L adds 2% molybdenum for significantly better chloride, acid and saline resistance. Choose 316L for pharmaceutical, food, marine and chemical applications; 304 for cost-effective dry powder screening and aggregate classification. Coarse 3 – 10 mesh stainless steel sieve is specifically engineered for quarry, aggregate and mining pre-screening where particle size exceeds 1.6 mm. Heavy wire diameters (2.0 – 6.0 mm) and crimped weave patterns deliver the mechanical strength required for vibrating screen decks handling abrasive rock and ore. Plain weave suits general screening and coarse meshes up to about 200 mesh. Twill weave is preferred for fine meshes above 200 mesh running on high-frequency vibrating screens. Dutch weave (plain Dutch or twill Dutch) is used for 325 + mesh ultra-fine precision filtration where maximum strength and minimum open area are required. Standard sieve mesh rolls up to 3 m width ship within 48 hours from stock. Custom mesh counts, framed test sieves and formed filter elements typically require 7 – 15 working days depending on specification, material grade and quantity. Yes. Free samples are shipped within 7 days of confirmed request. Every stainless steel sieve shipment is accompanied by EN 10204 3.1 MTC, ISO 9044 and ASTM E2016 compliance documentation. Third-party testing (SGS, BV, TÜV) can be arranged on request. Rolls are wrapped in moisture-proof film and packed in woven bags or wooden crates. Cut panels, framed sieves and formed discs are individually separated by foam or kraft paper and packed in reinforced wooden cases. Container loading supervision and door-to-door logistics are available on request. Tell us your required mesh count, stainless steel grade, aperture, product form and application. Our engineers will recommend the optimal sieve configuration and ship a free sample within 7 days.Stainless Steel Sieve — Precision Screening From 3 Mesh to 635 Mesh
Key Specifications At A Glance
Mesh Range
Steel Grades
Roll Width
Standards
Stainless Steel Sieve Grades & Material Selection
304 Stainless Steel Sieve
316L Stainless Steel Sieve
904L Super-Austenitic Sieve
2205 Duplex Stainless Steel Sieve
321 Stainless Steel Sieve
430 Ferritic Stainless Steel Sieve
Mesh Count, Aperture & Weave Selection
Mesh Aperture Wire Diameter Weave Type Recommended Application 3 – 10 1,600 – 6,300 µm 2.00 – 6.00 mm Plain / Crimped Aggregate, quarry stone, mining pre-screening 10 – 40 425 – 2,000 µm 0.40 – 2.00 mm Plain Mineral classification, sand grading 40 – 80 180 – 425 µm 0.18 – 0.40 mm Plain Food powder, grain, general chemical 80 – 200 75 – 180 µm 0.08 – 0.18 mm Plain / Twill Pharmaceutical powder, fine chemical, flour 200 – 325 45 – 75 µm 0.035 – 0.08 mm Twill Battery powder, API, mineral fines 325 – 500 25 – 45 µm 0.025 – 0.035 mm Twill / Dutch Ultra-fine chemical, cosmetic pigments 500 – 635 20 – 25 µm 0.020 – 0.025 mm Dutch Catalyst filtration, lab sieving, hydraulic oil Sieve Product Forms
Woven Sieve Mesh Roll
Framed Test Sieve
Sieve Filter Disc & Element
Industry Applications
Mining & Quarrying
Food Processing
Pharmaceutical
Chemical Industry
Water Treatment
Laboratory Testing
Ceramics & Glass
Battery & New Energy
Quality Assurance & Certifications
Aperture Precision
Material Certification
Custom Manufacturing
Global Delivery
Frequently Asked Questions
What is the difference between 304 and 316L stainless steel sieve?
Why does your sieve range start at 3 mesh instead of 10 mesh?
How do I choose between plain weave, twill weave and Dutch weave?
What is the lead time for custom sieve orders?
Do you provide free samples and mill test certificates?
What packaging protects the sieve during international export?
