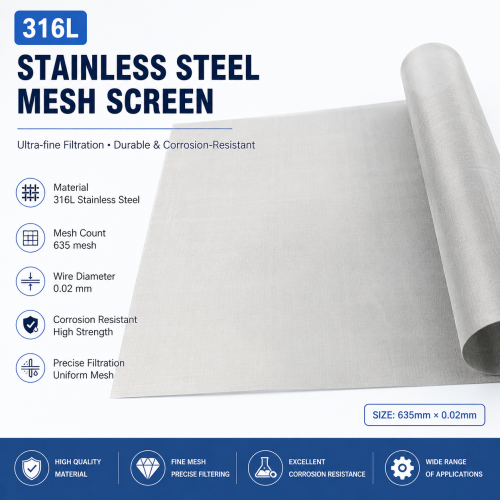

MESCO Stainless Steel Wire Mesh Solutions
DALIAN MESCO STEEL CO., LTD specializes in manufacturing stainless steel wire mesh across five material grades: SUS304, SUS304L, SUS316, SUS316L, and SUS904L. Our product portfolio covers three core lines: stainless steel sieve mesh, Dutch weave mesh, and plain weave printing mesh. All products comply with international standards GB/T 5330, ASTM E2016, and ISO 9044.
Product Highlights
Full Mesh Range 1-500
From coarse to ultra-fine specifications covering all industrial filtration and screening needs.
Wire Dia. 0.02-2.0 mm
Wide wire diameter range for every application, from precision printing to heavy-duty screening.
Custom Drawings & Samples
Custom manufacturing based on your technical drawings and material requirements.
Cutting, Bending, Welding
Complete deep processing services to deliver ready-to-install components.
Material Grades Comparison
SUS304
06Cr19Ni10 / 1.4301
General-purpose austenitic stainless steel. Most widely used with balanced performance and competitive price.
C ≤ 0.08%
Best Seller
SUS304L
022Cr19Ni10 / 1.4307
Ultra-low carbon design prevents intergranular corrosion after welding. Recommended for food and pharmaceutical use.
C ≤ 0.03%
SUS316
06Cr17Ni12Mo2 / 1.4401
2-3% molybdenum improves resistance to chloride pitting. Ideal for marine and chemical corrosive environments.
Mo 2-3%
SUS316L
022Cr17Ni12Mo2 / 1.4404
Ultra-low carbon plus molybdenum. Combines 304L weldability with 316 corrosion resistance.
C ≤ 0.03% / Mo 2-3%
SUS904L
015Cr21Ni26Mo5Cu2 / 1.4539
Super-austenitic stainless steel for sulfuric, phosphoric and other strong acid environments.
Mo 4-5% / Acid Resistant
Technical Specifications - Sieve Mesh
| Mesh Count | Wire Dia. (mm) | Aperture (mm) |
|---|
| 500 x 500 | 0.025 | 0.0258 |
| 400 x 400 | 0.030 | 0.0335 |
| 325 x 325 | 0.035 | 0.0432 |
| 250 x 250 | 0.050 | 0.0516 |
| 200 x 200 | 0.058 | 0.0690 |
| 150 x 150 | 0.060 | 0.109 |
| 100 x 100 | 0.100 | 0.154 |
| 80 x 80 | 0.140 | 0.18 |
| 60 x 60 | 0.178 | 0.25 |
| 40 x 40 | 0.254 | 0.38 |
| 30 x 30 | 0.305 | 0.54 |
| 20 x 20 | 0.406 | 0.86 |
| 10 x 10 | 0.640 | 1.91 |
| 5 x 5 | 1.040 | 4.04 |
| 2 x 2 | 1.800 | 11.1 |
| 1 x 1 | 2.030 | 23.37 |
Full specification list covering 100+ sizes available on request. Custom sizes manufactured to your requirements.
Technical Specifications - Dutch Weave
| Mesh Count | Warp Wire (mm) | Weft Wire (mm) |
|---|
| 12 x 64 | 0.58 | 0.40 |
| 24 x 110 | 0.35 | 0.25 |
| 40 x 200 | 0.18 | 0.14 |
| 60 x 300 | 0.14 | 0.09 |
| 80 x 700 | 0.10 | 0.08 |
| 120 x 1100 | 0.08 | 0.05 |
| 200 x 1400 | 0.07 | 0.04 |
| 325 x 2300 | 0.035 | 0.025 |
| 400 x 2800 | 0.030 | 0.02 |
| 500 x 3500 | 0.025 | 0.018 |
| 635 x 4000 | 0.020 | 0.014 |
Technical Specifications - Printing Mesh
| Mesh Count | Wire Dia. (mm) | Aperture (mm) |
|---|
| 420 | 0.022 | 0.0385 |
| 400 | 0.022 | 0.0415 |
| 350 | 0.022 | 0.0506 |
| 325 | 0.030 | 0.0482 |
| 280 | 0.035 | 0.0557 |
| 250 | 0.030 | 0.0716 |
| 200 | 0.050 | 0.0770 |
| 180 | 0.050 | 0.0911 |
| 150 | 0.060 | 0.1093 |
| 120 | 0.080 | 0.1317 |
| 80 | 0.050 | 0.2675 |
Chemical Composition (%)
| Element | SUS304 | SUS304L | SUS316 | SUS316L | SUS904L |
|---|
| Carbon C | ≤ 0.08 | ≤ 0.03 | ≤ 0.08 | ≤ 0.03 | ≤ 0.02 |
| Chromium Cr | 18.0-20.0 | 18.0-20.0 | 16.0-18.0 | 16.0-18.0 | 19.0-23.0 |
| Nickel Ni | 8.0-10.5 | 8.0-12.0 | 10.0-14.0 | 10.0-14.0 | 23.0-28.0 |
| Molybdenum Mo | - | - | 2.0-3.0 | 2.0-3.0 | 4.0-5.0 |
| Copper Cu | - | - | - | - | 1.0-2.0 |
| Iron Fe | Balance | Balance | Balance | Balance | Balance |
Three Product Lines
Stainless Steel Sieve Mesh
Plain Weave Sieve Mesh
Warp and weft wires interlace one-over-one. Flat surface, uniform mesh openings, high strength. The most versatile general-purpose wire mesh.
Mesh: 1-800 Use: General screening and filtration
Stainless Steel Dutch Weave
Dutch Weave Mesh
Dense warp and sparse weft create a trapezoidal pore structure. High filtration precision with good flow, designed for precision filtration and solid-liquid separation.
Mesh: 12x64 to 635x4200 Use: Precision filtration
Plain Weave Printing Mesh
Screen Printing Mesh
High-precision plain weave for screen printing. Ultra-flat surface, uniform thickness, stable ink transfer, exceptional print accuracy.
Mesh: 80-420 Use: Screen printing, glass, ceramics, electronics
Cross-Industry Applications
Food & Beverage
Juice, syrup, edible oil, milk powder, starch. Liquid-solid separation and impurity removal. Compliant with food contact standards.
Pharmaceutical
Raw material screening, particle impurity removal, biological fermentation broth filtration. Smooth surface, easy to sanitize, meets GMP.
Chemical & Coatings
Acid and alkali resistant. Resins, pigments, catalyst filtration and recovery. SUS904L handles strong acid media.
Oil & Energy
Oilfield mud screening, lubricating oil filtration, catalytic cracking particle interception. Withstands high temperature and pressure.
Mining & Metallurgy
Precision screening and classification of ore, mineral powder, coal powder and powder metallurgy raw materials.
Screen Printing
Precision printing for glass, ceramics, electronic circuits and textiles. Plain weave printing mesh ensures uniform ink transfer.
Full-Process Quality Control
1
Raw Material
Spectral grade analysis
2
Precision Weaving
Imported equipment
3
Mesh Inspection
Section-by-section testing
4
Flattening
Roll leveling and stress relief
5
Packaging
Moisture-proof packaging
International Standards & Certifications
GB/T 5330Chinese Standard
ASTM E2016American Standard
Cooperation & Order Information
Service Capabilities
- Materials: Wire mesh, Sieve mesh, Copper mesh, Hornel mesh
- MOQ: From 1 roll
- Standard Lead Time: 3-7 working days
- Custom Lead Time: 7-15 working days
- Processing: Cutting, Bending, Welding, Forming
- Packaging: Moisture-proof paper, wooden case or pallet
- Logistics: Worldwide shipping and export booking
- After-Sales: Free replacement for quality issues
