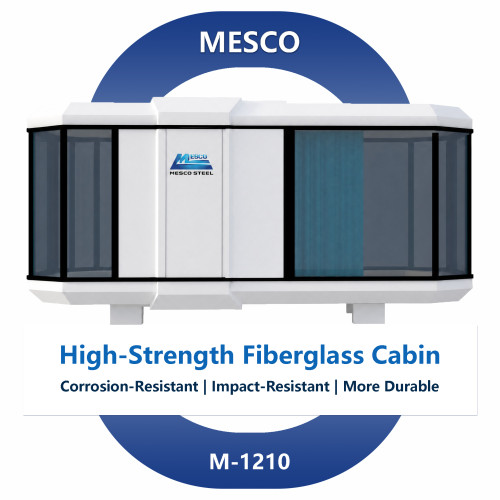

MESCO STEEL 21㎡ Prefabricated Expandable Container Home — Modular Building | Detachable Steel Structure
Detail Information
MESCO STEEL M1210 Modular Cabin — Product Specification
M-11210
MESCO STEEL is a specialized manufacturer of integrated modular cabins and prefabricated housing systems, serving developers, EPC contractors, hospitality operators, and site infrastructure managers worldwide.
21
㎡18mm
Solid wood wall95%
LOW-E glass blocks of UV radiation956
Marine-grade 956 resin shell
M-1210 MESCO STEEL Foldable Tiny House — Collapsible Mini Prefab Home | Compact Mobile Modular Cabin
The M1210 Modular Cabin is built around a fully integrated structural system — not assembled from small metal panels like conventional prefab units. This fundamental design difference translates directly into lower lifecycle costs, faster on-site installation, and measurable performance advantages across four critical dimensions.
Core System Architecture
The M-1210 features four proprietary integrated components:
One-piece molded roof — eliminates panel joints, the primary source of water ingress and thermal loss in traditional modular cabins
Integrated structural frame assembly — factory-welded mono-frame reduces on-site labor and eliminates post-assembly alignment issues
One-piece bathroom pod — pre-plumbed, pre-finished, and pressure-tested before shipment; zero wet trades required on site
Molded ceiling system — continuous surface with no seams, improving both acoustic performance and cleanability
Performance vs. Conventional Prefab
MESCO STEEL M-1210
Performance Metric | Conventional Panel-Assembly Prefab | MESCO STEEL M-1210 |
Weatherproofing | Panel joints = leak risk | Seamless molded structure |
Thermal insulation | Thermal bridging at every joint | Continuous insulated envelope |
Structural integrity | Dependent on fastener quality | Mono-frame factory assembly |
Installation time | Multi-day site assembly | Single-lift deployment |
Standard Configuration Table
Item | Material / Specification | Parameters | Features |
Model | MESCO STEEL M1210 | 21 m² | Compact modular cabin |
Roof Shell | Marine-Grade 956 Resin | One-piece molded | Leak-proof, corrosion-resistant |
Bottom Shell | Marine-Grade 956 Resin | One-piece molded | Moisture-proof, corrosion-resistant |
Exterior Wall | 6-Series Aluminum Panel | 2.5 mm | Integrated installation, no exposed seams |
Entry Door | Insulated Aluminum Alloy Door | 2.5 mm | Double sealing strips, 304 stainless steel hinges |
Glass | LOW-E Fully Tempered Glass | Standard double glazing | Blocks 95% UV, optional triple glazing |
Ceiling | Molded Integrated Ceiling | — | Durable, clean finish |
Flooring | Multi-Layer Solid Wood Flooring | 15 mm | Waterproof, wear-resistant |
Interior Wall | Solid Wood Wall Panels | 18 mm | Eco-friendly, durable, odor-free |
Bathroom Wall | PE Impact-Resistant Panels | — | Waterproof, easy to clean |
Air Conditioner | Wall-Mounted Cooling & Heating AC | 1.5 HP | Cooling & heating |
Bed | Solid Wood Bed | 1.8 m × 2.0 m | Comfortable standard size |
Smart Control | Voice Control System | Xiaodu / Tmall Genie Compatible | Smart lighting & voice control |
Water Heater | Horizontal Water Heater | 50 L | AUX / Haotaitai |
Configurations can be adjusted and customized according to your actual needs, with prices varied accordingly. Feel free to contact us for details and an accurate quotation. | |||
Procurement Advantages for Buyers
Procurement Advantages
Faster project delivery — reduced on-site assembly time shortens critical path on construction schedules
Lower total cost of ownership — superior sealing and insulation reduce HVAC load and maintenance frequency
Consistent quality at volume — factory-controlled production eliminates variability across large orders
Flexible application — suitable for workforce accommodation, modular hotels, site offices, and permanent residential deployment
