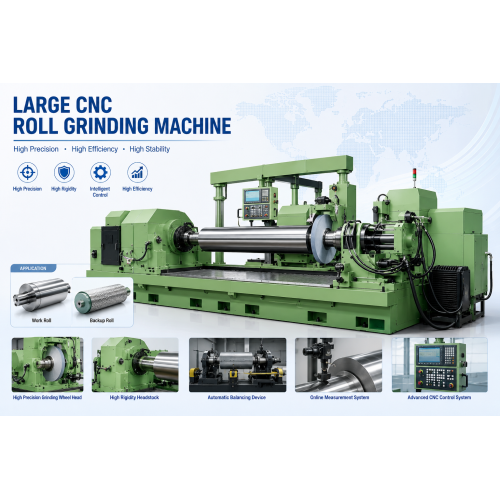

Large CNC Roll Grinding Machine | Precision Roll Grinder up to 200 Tons

Overview

The Large CNC Roll Grinding Machine is a high-performance precision machining system engineered specifically for the manufacturing and maintenance of large industrial rolls used in cold rolling mills, hot rolling mills, and strip processing lines. By integrating ultra-rigid mechanical structures, high-precision hydrostatic spindle technology, intelligent grinding control, online measurement systems, and fully automated material handling, this CNC roll grinding machine delivers exceptional grinding accuracy, superior surface quality, and long-term operational stability for the most demanding metallurgical applications.

Designed for large-scale steel processing enterprises, the machine supports grinding of rolls ranging from φ200 mm to φ2500 mm in diameter, up to 12,000 mm in length, and weighing up to 200 tons. It handles a comprehensive range of roll types — including cold rolling work rolls, backup rolls, skin pass mill rolls, leveler rolls, furnace rolls, and CVC/PC profile rolls — providing a complete solution for improving roll quality, extending roll service life by 20–30%, reducing maintenance costs, and enhancing overall rolling mill productivity.

Key Features

• Industry-Leading Grinding Accuracy: Achieves roundness ≤0.001 mm, cylindricity ≤0.002 mm/m, surface roughness Ra ≤0.1 μm, and roll profile error ≤0.003 mm — meeting the highest precision requirements of modern steel rolling mills for premium strip surface quality.
• Ultra-Large Machining Capability: Handles workpiece diameters from φ200 mm to φ2500 mm, roll lengths up to 12,000 mm, and maximum workpiece weight up to 200 tons, making it suitable for everything from precision work rolls to massive backup rolls in heavy plate mills.
• Five-Axis Linkage Grinding Technology: Advanced multi-axis CNC control enables precision machining of complex roll profiles including CVC rolls, PC rolls, crowned rolls, tapered rolls, and customized curve profiles — providing continuous high-precision profile grinding capability that conventional roll grinders cannot match.
• Full Closed-Loop Measurement & Automatic Compensation: Integrated online laser profile measurement, roundness/cylindricity inspection, and surface roughness monitoring provide real-time quality control during grinding, with automatic machining error compensation and dynamic grinding parameter adjustment for consistent results without operator dependency.
• High-Precision Hydrostatic Spindle System: Advanced hydrostatic bearing technology delivers excellent rotational accuracy, ultra-low vibration operation, and superior thermal stability — ideal for ultra-precision roll finishing that demands the finest surface quality.
• Fully Automated Roll Handling: Heavy-duty loading robot, automatic clamping and positioning system, and continuous multi-roll processing capability reduce operator requirements by up to 50% and support unmanned operation for maximum production efficiency.
• Intelligent Grinding Wheel Management: Automatic dynamic balancing, diamond roller dressing, wear compensation, and grinding parameter optimization extend wheel life, stabilize grinding quality, and reduce consumable costs — all managed automatically without manual intervention.
• Intelligent Diagnosis & Remote Maintenance: Automatic fault diagnosis, equipment health monitoring, 72-hour advance fault warning, and global remote commissioning capability ensure maximum uptime and minimize unplanned downtime across the machine's 20+ year service life.

Technical Specifications

Supported Roll Types

Applications

Cold Rolling Mills: Precision grinding of cold rolling work rolls and backup rolls is essential for producing high-quality cold-rolled steel strip with superior surface finish and tight dimensional tolerances. The machine's micron-level accuracy ensures that rolled steel meets the stringent specifications required for automotive body panels, appliance housings, and precision strip products.

Hot Rolling Mills: Heavy-duty grinding of hot rolling work rolls and backup rolls maintains optimal roll profiles and surface conditions for efficient hot strip production. The machine's ultra-large capacity handles the massive rolls used in plate mills and wide strip mills, while the five-axis grinding capability supports complex CVC and PC profile rolls for advanced strip shape control.

Strip Processing Lines: Skin pass mill rolls, leveler rolls, and furnace rolls used in continuous processing lines require regular regrinding to maintain product quality and line productivity. The automated roll handling system enables efficient batch processing of multiple rolls, minimizing turnaround time and supporting continuous mill operations.

Aluminum and Non-Ferrous Metal Rolling: The machine's versatile grinding capability extends to rolls used in aluminum foil mills, sheet mills, and non-ferrous metal processing lines. The hydrostatic spindle system and precision cooling control ensure the exceptional surface quality required for high-value non-ferrous rolled products.

Roll Manufacturing Workshops: For specialized roll manufacturers, the machine provides a complete production platform capable of manufacturing new rolls from rough machining through final precision finishing. The integrated measurement systems and intelligent grinding wheel management ensure consistent quality across high-volume roll production runs.

FAQ

What types of rolls can this CNC roll grinding machine process?

The machine handles a comprehensive range of metallurgical rolls including cold rolling work rolls, hot rolling work rolls, backup rolls, skin pass mill rolls, leveler rolls, furnace rolls, CVC/PC profile rolls, crowned rolls, tapered rolls, and customized special profile rolls. It supports workpiece diameters from φ200 mm to φ2500 mm, lengths up to 12,000 mm, and weights up to 200 tons — covering virtually all roll types used in modern steel rolling facilities.

What grinding accuracy does the machine achieve?

The Large CNC Roll Grinding Machine delivers industry-leading precision: roundness ≤0.001 mm, cylindricity ≤0.002 mm/m, surface roughness Ra ≤0.1 μm, and roll profile error ≤0.003 mm. These accuracy levels meet the highest requirements of modern steel rolling mills and are achieved through the combination of hydrostatic spindle technology, full closed-loop linear scale feedback, and real-time measurement with automatic compensation.

How does the five-axis linkage grinding technology work?

The five-axis CNC control system (Siemens 840D sl or FANUC 31i-B5) enables simultaneous multi-axis coordinated movement for precision machining of complex roll profiles. Unlike conventional two-axis grinders limited to simple cylindrical shapes, the five-axis configuration can produce CVC curves, PC profiles, crowns, tapers, and custom contours in a single setup — ensuring continuous high-precision profile grinding without re-clamping errors.

What are the economic advantages compared to imported equipment?

Compared with equivalent imported CNC roll grinding machines, this system offers a 40–50% reduction in initial investment and over 60% lower maintenance costs. Additionally, grinding efficiency is improved by 30–50% versus conventional CNC roll grinders, roll service life is extended by 20–30%, grinding costs are reduced by 15–20% per ton of rolled steel, and operator requirements are cut by up to 50%. The machine's 20+ year service life with 8–10 year major overhaul cycles ensures an excellent long-term return on investment.

Do you provide installation, training, and after-sales support?

Yes. We deliver a complete lifecycle solution including on-site installation and commissioning, operator training, process optimization, and ongoing technical support. The machine features a remote operation and maintenance module with global remote commissioning capability, automatic fault diagnosis, equipment health monitoring, and 72-hour advance fault warning. Our service team provides spare parts supply, software upgrades for new roll profile processing, and predictive maintenance support throughout the machine's operational lifespan.

Can the machine be customized for specific roll types or production requirements?

Yes. The modular equipment design allows customization of worktable dimensions, grinding wheel specifications, measurement system configurations, and automation levels to match specific production requirements. The CNC system supports built-in standard roll profile programs (CVC, crown, taper, concave/convex) and can be upgraded with new profile processing software as customer needs evolve, extending the equipment's capability and lifecycle.
