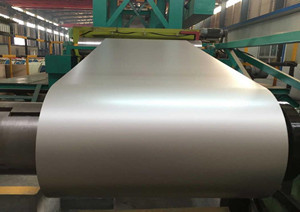

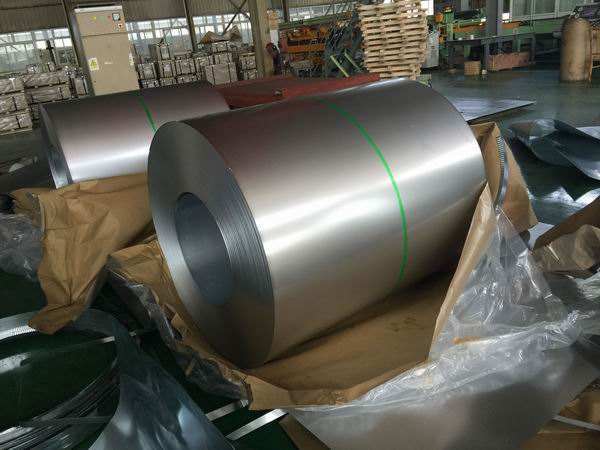

Zn-Al-Mg Alloy Coating steel Zinc Aluminum Magnesium Steel Coil/Sheet/Strip/Tube

Zn-Al-Mg Alloy Coating steel Zinc Aluminum Magnesium Steel Coil/Sheet/Strip/Tube
Zn-Al-Mg Alloy Coating steel Zinc Aluminum Magnesium Steel Coil/Sheet/Strip/TubeZn-Al-Mg Alloy Coating steel Zinc Aluminum Magnesium Steel Coil/Sheet/Strip/TubeZn-Al-Mg Alloy Coating steel Zinc Aluminum Magnesium Steel Coil/Sheet/Strip/TubeZn-Al-Mg Alloy Coating steel Zinc Aluminum Magnesium Steel Coil/Sheet/Strip/TubeZn-Al-Mg Alloy Coating steel Zinc Aluminum Magnesium Steel Coil/Sheet/Strip/Tube
CategoriesZAM
BrandMESCO Steel Supplier
ModelDX51D+ZM DX52D+ZM DX53D+ZM S450GD+ZM S550GD+ZM
Product NameZAM
Surface treatmentPassivation, fingerprint resistant, oiled
Coating thickness60-450g/m2(Both sides)
ZAM coating product specifications0.12-2.0mm×600-1600mm
ShapeCoil/Sheet/Strip/Tube
Coil Weight3-8tons
ColorSilver
CertificateISO 9001:2008/SGS/BV
PackageStandard Seaworthy Packing
Payment termL/C T/T (30% Deposit)
Unit PriceUS $ 699 / metric ton
FOB portTianjin
Terms of PaymentL/C, T/T
Update Time2022/5/29
Detail Information
Specification
Coating thickness
60-450g/m2(Both sides)
Width
600-1600mm
Thickness
0.12-2.0mm
Length
Cutomization
ZAM Introduction
Zinc Magnesium Aluminium alloy Coating Product

Mesco current Zn-Al-Mg component system is a  low aluminum and low magnesium products with good surface quality, good corrosion resistance, wide range of uses, can be used in building
materials, home appliances and automotive industries.

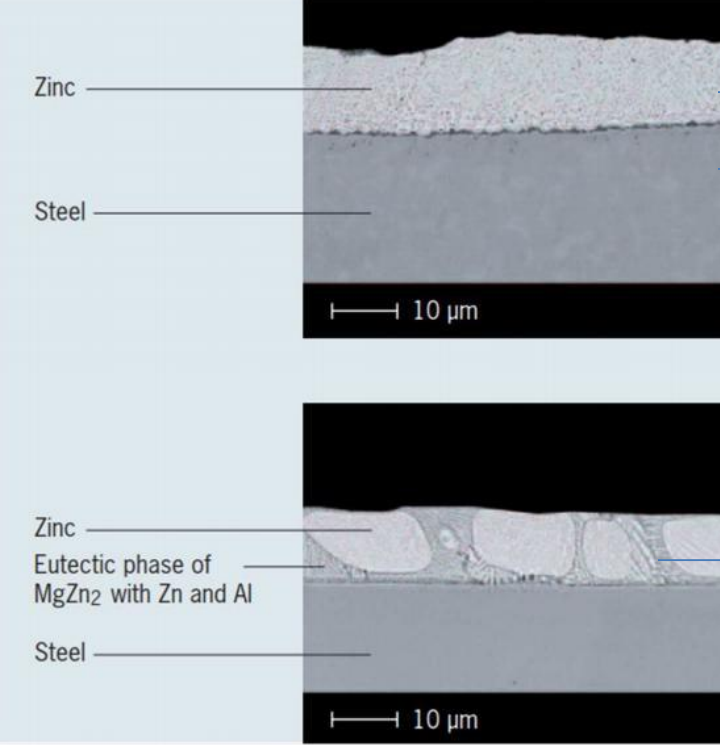

The Zn-Al-Mg products have a honeycomb-like structural structure in the coating and are the main reason for good corrosion resistance, friction resistance, and peel resistance.
ZAM Feature

1. Zn-Al-Mg coating has better corrosion resistance, and the increase of Al and Mg content in a certain range makes the corrosion resistance of Zn-Al-Mg coated steel sheet increase several times times higher than that of galvanized steel sheet.

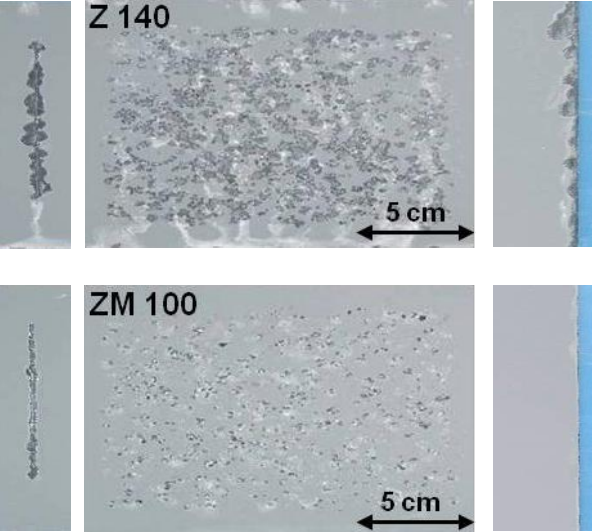

GI Z140g vs ZAM zm100g
Scratch corrosion, plane corrosion, trimming corrosion photos of Z140 and ZM100 after cyclic accelerated corrosion test from left to righ

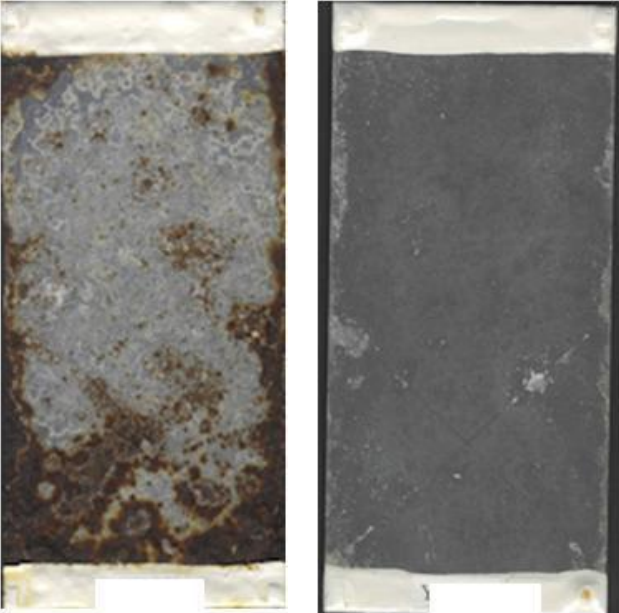

GI vs ZAM
Contrast of on the island of Miyakojima after 5 years of sun


2. With low friction coefficient and stable friction characteristics, it is very favorable for punching, which can reduce the amount of wear on the coating, thereby reducing the part's pulling defects.

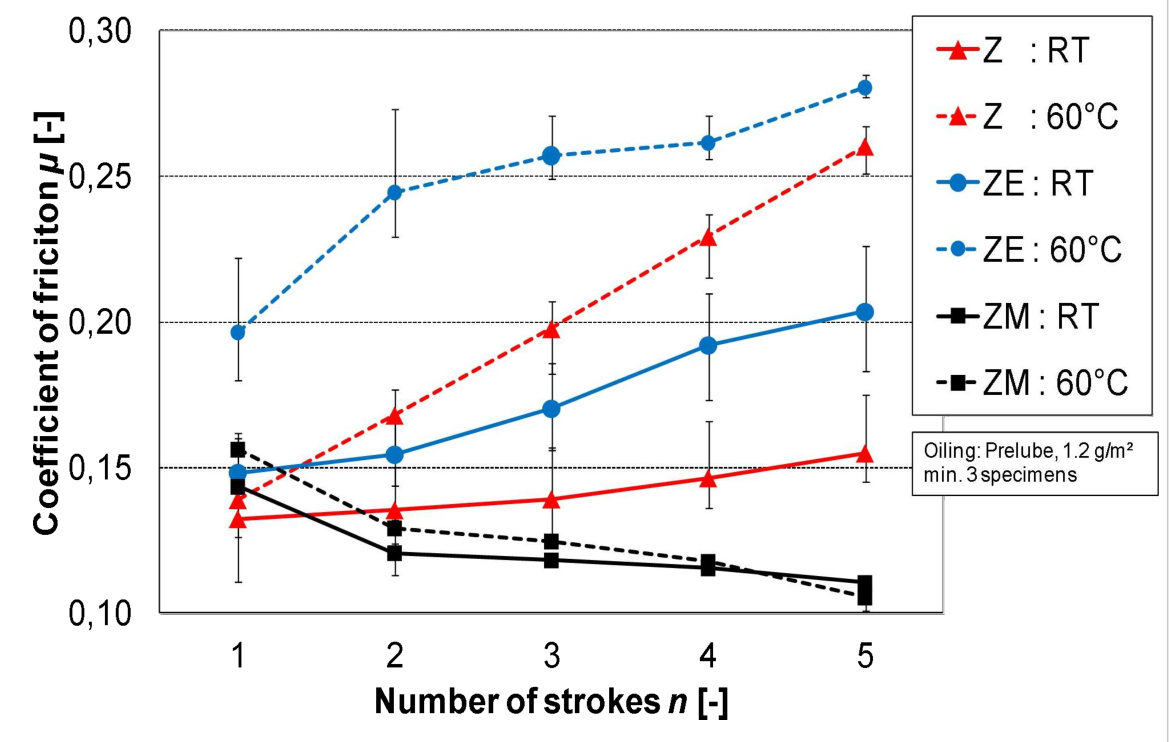

                 Comparing the friction coefficient of different coatings, the friction coefficient of ZAM coating is the best

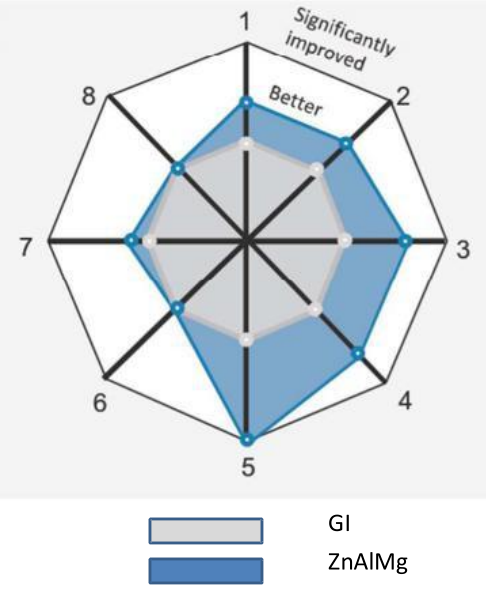

3. The Zn-Al-Mg coating has good welding performance, and the addition of magnesium can reduce the spatter of the weld attachment in the laser welding process and improve the welding performance.


1. Good paint adhesion

2. Good cutting edge corrosion

3. Good scratch resistance

4. Good rub resistance

5. Good peel resistance

6. Good spot welding performance

7. Good laser welding performance

8. Good bonding properties
4. Coating properties of ZAM plated steel sheet.
ZAM coated steel sheet has the same coating properties as pure zinc and can be electrophoretically, post-painted, and used for color coating materials. Due to its excellent corrosion resistance under the film, it can significantly improve the corrosion resistance of the coated product.

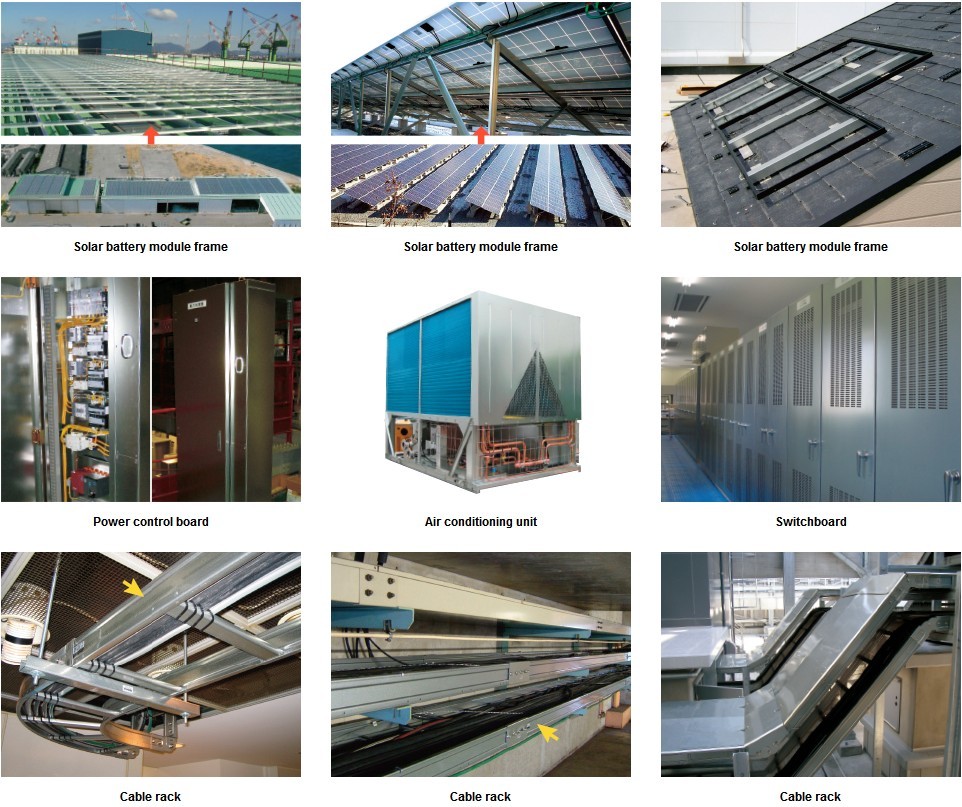

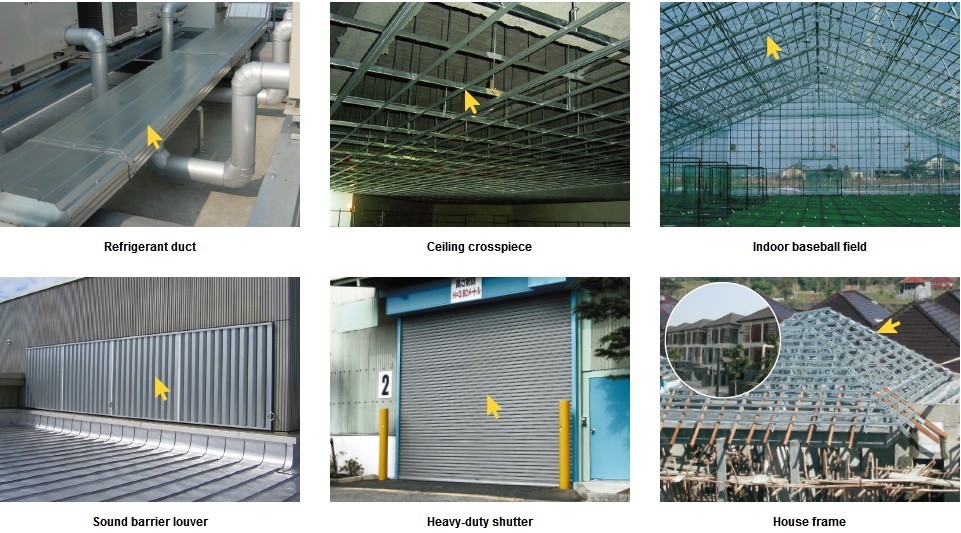

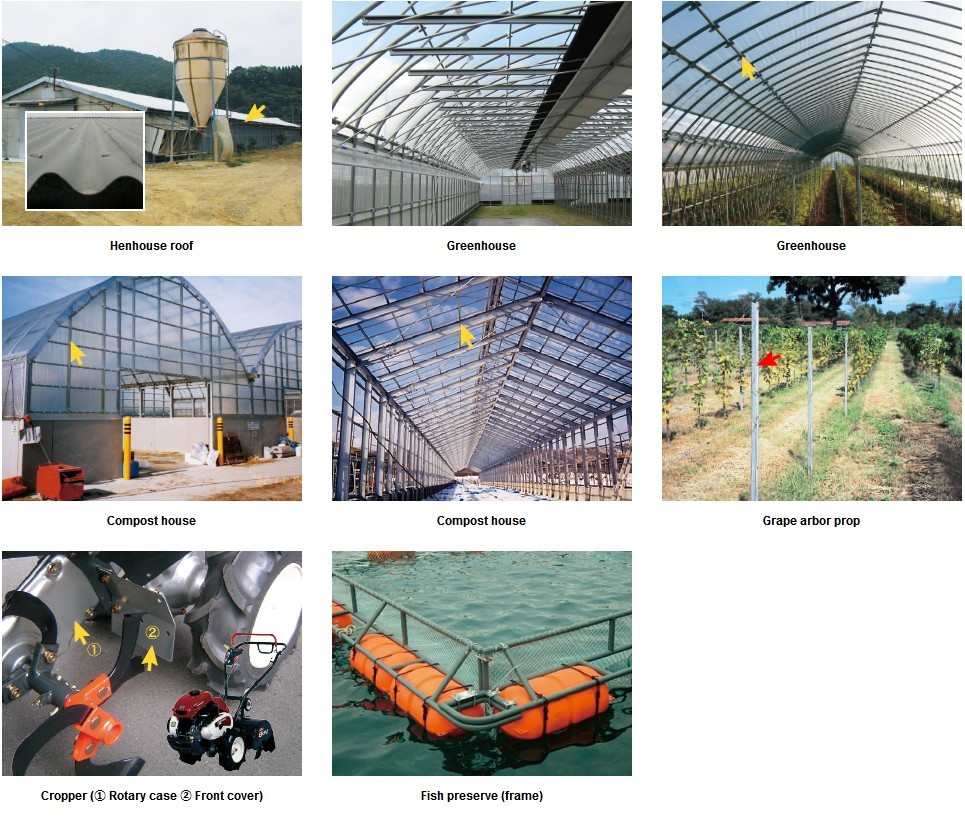

Application
Zinc coated aluminum and magnesium products are widely used in buildings, home appliances, etc., which
require high corrosion resistance.

Automotive panels, automotive interior panels and automotive structural steels have been used in Europe and North America
